7 DIY Truck Bed Bike Rack Plans
Transform your truck bed into a versatile and efficient bike transport solution with these DIY Truck Bed Bike Rack plans. Whether you’re a passionate cyclist or simply looking for a convenient way to carry your bikes on outdoor adventures, these easy-to-follow plans provide step-by-step instructions to help you construct a sturdy and customizable bike rack.
Wooden Truck Bed Bike Racks
Save money by building your rack to match your truck size and your bike-carrying needs. The following plans are suitable for trucks of any size and can fit different bike sizes. You’ll find plans for primarily wooden structures mixed with some PVC options for customization. So try to organize your truck bed and build strong bike racks for your needs.
Step-by-step Building Instructions
Build your truck bed bike rack with these simple instructions! Learn the step-by-step process using simple materials and tools to secure your bikes effectively.
Instructions
- Measure the width of your truck bed.
- Acquire the required lumber and other materials.
- Cut the lumber into 4 sections: 2 to match the bed width and 2 shorter for bike slots.
- Arrange in rectangular form with shorter sections inside to create bike slots.
- Secure corners using wood screws.
- Make sure the distance between the slots is aligned with the bike tire.
- Paint or varnish the rack for weather protection.
- Install the rack inside the truck bed for convenient bike transport.
Safety Precautions for Transporting Bikes
When transporting bikes on truck bed bike racks, it’s crucial to follow safety precautions to protect both your bikes and your truck. Here are some practical safety tips to keep in mind:
Lock up your bikes: Make sure your bikes are tied down tightly with bands, or use a rack that fits in your truck bed.
Balance load: Keep weight equal by arranging bikes in your truck bed in a good way.
Look at your rack often: Check your bike rack now and then. Moving while driving can loosen things.
Use padding: Stop your bikes and trucks from getting hurt by using soft coverings.
Lock your bikes: Make sure your bikes are locked when you’re not there to keep them from being stolen.
Follow directions: Use the DIY truck bed bike rack the right way by doing what the maker says.
Follow road rules: Be careful when driving. The weight in your vehicle has changed.
By following these safety precautions, you can protect your bike and vehicle while enjoying your cycling adventures.

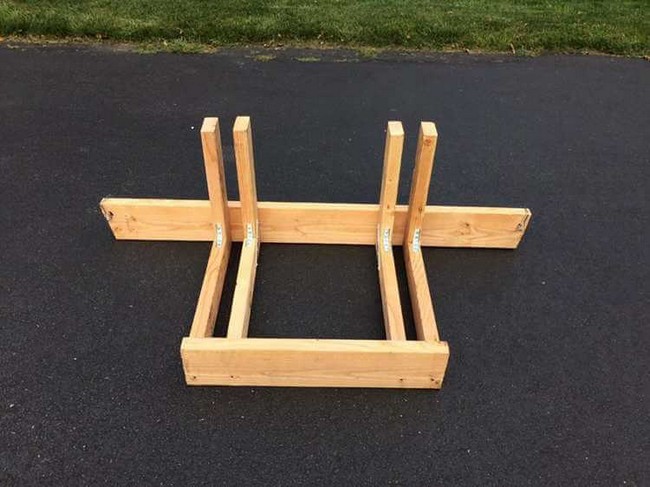

L Shaped Wood Alternative
Bike enthusiasts, rejoice! The DIY L-shaped Wood Alternative for your bike rack pickup enhances ease of transportation and delivers an efficient space-saving solution. Specially designed to add convenience to your outdoor adventures, this charming setup transforms your pickup bed into a smart, bike-carrying system. Thanks to its minimalist design, your bike snugly fits into the pickup bed while leaving ample space for other gear.
Making:
Preparing the DIY L-shaped Wood Alternative involves some simple steps for an efficient bike-mounting system. Replace expensive, store-bought racks with your own hand-made version. Start by utilizing 2×4 and 2×6 standard wood measurements to forge the critical L-shape. Follow this up with the proper placement of brackets and broadly accessible collar hooks to get the perfect hold, and finish off with a layer of spray paint for added finesse.
Materials:
- 1 piece of 2×6 Wood
- 2 pieces of 2×4 Wood
- Angle Brackets
- Collar Hooks
- Protective Spray Paint
Recovered Pallet Solution
A DIY Recovered Pallet Solution offers a thrifty, handy, and eco-friendly way to organize and transport goods. Specifically tailored for bikes, this pallet solution serves as a bike rack, making bike transportation much more accessible and damage-free. Instead of the bikes laying on top of each other and getting scratched, each bike gets its own slot, ensuring safer transportation. It’s an organization and transport solution that benefits not just bike users but anyone who needs a compact, easy-to-use storage unit.
Making:
Building a bike rack from an unused pallet can be easy. The process starts by disassembling the pallet and then reorganizing the boards. The reassembled pallet should form slots within which bikes can be fitted. When not in use, it can lay flat, but during transport, it’s leaned against the back bed of a vehicle with bikes fitting in each slot. Securing the bikes using a ratchet strap maintains the bikes’ position during transit. In simpler terms, it’s like building a compact rack using old pallets and some clever organization.
Materials:
- An unused pallet
- A Ratchet Strap
- Nails
- A Nail Gun or Hammer
PVC Bike Racks
A DIY PVC Bike Rack adds both practicality and style to your vehicle when transporting your bicycles. Made with lightweight PVC, it offers a reliable solution for securing bikes in your truck bed, keeping them scratch-free and stable during any road trip. Perfect for outdoor enthusiasts, families, or frequent cyclists, this custom-built rack is both sturdy and user-friendly, ensuring your bikes arrive safely and in style.
Making:
Creating a DIY PVC Bike Rack is a simple yet rewarding activity. Start by measuring and cutting PVC pipes to fit the dimensions of your truck bed. Connect pipe sections using tees and elbows, crafting slots tailored to the size of each bike tire. The structure is designed to hold the bikes securely in place without obstructing the truck bed area. Once all the pieces are assembled, place the finished rack in the truck bed for a snug and secure fit.
Materials:
- Four 10-ft, 3/4″ PVC pipes
- Six 3/4″ elbows
- Eighteen 3/4″ tees
- PVC glue
- Chop saw
- Mallet (Optional)

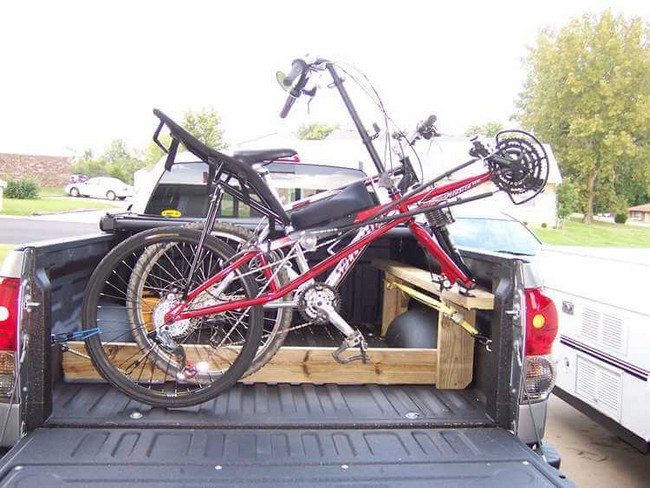

Side Mounted Bike Rack
A DIY side-mounted bike rack lends practicality and effectiveness to any bicycle owner’s arsenal. Ideal for camping trips or outdoor adventures, this bike rack sits snugly in the bed of a pickup truck. Besides ensuring easy transportation of your bikes, this side-mounted bike rack helps in efficiently using otherwise wasted space. Moreover, this setup allows your bike to stay stationary without any need to lift it over the side of the truck, adding convenience to your biking experience.
Making:
Start with pressure-treated lumber of sizes 2×4 and 2×6 and position them against the side of the truck bed. Fix the bike rack in place using a single ratchet strap attached to the truck’s factory tie-down points. The belt pulls the rack towards the wall of the bed. To prevent the rack from sliding, place a small lag bolt. Secure bike fork mounts, designed to your specific needs, on top of the wood, transforming it into an efficient bike rack. The use of another piece of 2×6 wood to keep the rear of the bikes stable further enhances the stability and safety of your DIY bike rack.
Materials:
- Pressure-treated lumber (2×4 and 2×6)
- Bike fork mounts
- Ratchet strap
- Small lag bolt
- Bungee cords
Store-Bought Augmentations
A DIY store-bought augmentation like a Bike Rack for a Pickup Truck Bed is an innovation that marries functionality and budget-friendliness, transforming your vehicle into a versatile carrier for your bicycles. Travel to your preferred location, unload your bikes, and embrace the thrill of a cycling adventure! Whether it’s a family vacation or a solo excursion, this addition to your pickup truck significantly ups your transporting game while ensuring safety and ease of mobility for your bicycles.
Making:
The first step is procuring a floor-sitting bike rack from the store. Measurements are crucial as the purchased rack should fit snugly in the bed of the truck for maximum stability. The rack needs to be trimmed to fit perfectly between the truck’s fender wells. Once the fit is ascertained, it’s time to secure the rack. This involves drilling holes in the truck bed and fixing the rack with fence clamps and bolts. Wing nuts are an excellent choice for easy removal and installation of the rack. To prevent rust, the bolts and clamps are coated with a spray-on bed liner.
Materials:
- Floor sitting bike rack
- Pipe cutter
- Drill
- Chain link fence clamps
- Pan head bolts
- Wing nuts
- Spray on bed liner

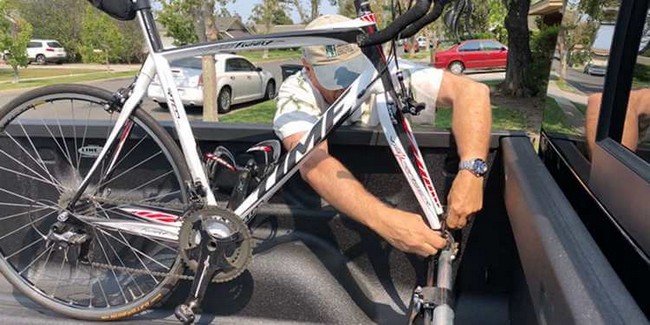

Bike Rack System
A DIY Bike Rack System provides an organized and space-saving solution for bike owners. Perfect for those who love cycling and need a practical place to store their bikes safely at home or for the transportation of multiple bikes during trips or events. A custom-built bike rack system allows bikes to stand upright, minimizing scratches, improving stability, and making the most of your storage area or vehicle.
Making:
Creating a DIY Bike Rack System doesn’t have to be complex or time-consuming. While Trucks.com doesn’t provide specific instructions for building a bike rack, it offers inspiration and guidance to truck, van, and SUV enthusiasts. Look for a design that matches your needs and the number of bikes you intend to store. You can use different materials like wood or PVC pipes to construct your bike rack and customize it according to your preferences. When building, consider the space available in your garage, yard, or vehicle and ensure the rack design offers easy access and secure storage for your bikes.
Materials:
- Wood or PVC pipes
- Screws or pipe fittings
- A saw (for cutting wood or PVC pipes)
- A drill (for wood)
- A tape measure
- Sandpaper (for wood)

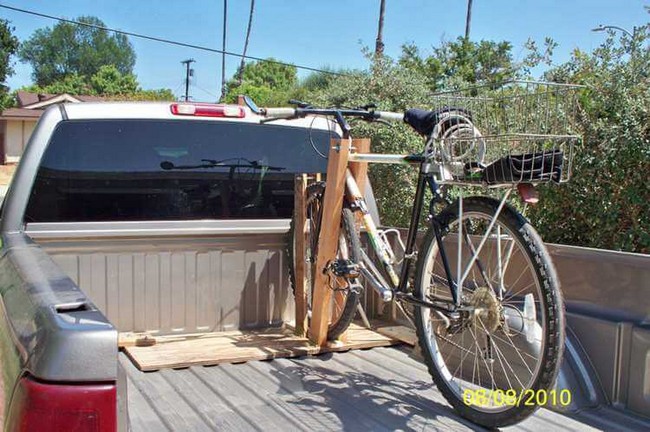

Frugal Bike Rack
The DIY Frugal Bike Rack is an ideal companion for every cyclist, especially those in need of a multi-functional, pocket-friendly storage solution. Perfectly designed to cradle your much-loved bikes, this storage enhancement prevents clutter, guarantees orderliness, and saves floor space by providing stand-up storage for your bicycles. Therefore, there are no more worries about management or damage to your bikes due to improper storage.
Making:
The creation of the DIY Frugal Bike Rack is a straightforward, budget-friendly process that results in a valuable storage element. Begin by selecting some reused wood or any other sturdy material available. Craft this into a secured, stable structure designed to house your bicycles comfortably. Remember to make it lockable using a durable cable or chain, which ensures your bikes are always within secured reach.
Materials:
- Reclaimed Lumber
- Electrical Conduit (for braces)
- Hinges
- Bolts
- Optional: Paint
